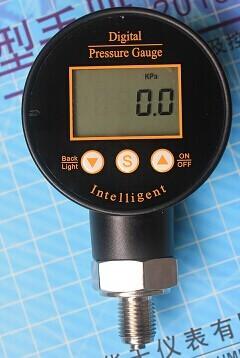

Digital Pressure Gauge with Battery-Powered PM-3000

Place of Origin : Shenzhen

Brand Name : shenzhen Haohua

Model Number : PM-3000

MOQ : 5pcs

Price : usd160

Packaging Details : FOAM+Carton

Delivery Time : 15days

Payment Terms : T/T

Supply Ability : 80000

Contact Now

Features:
4-digit number LCD display ,Low power consumption,no extrnal power supply;
Using microprocessor,Long battery life;
Zero point adjustment through the panel;
Can set turn off automatically or manually;
Low voltage alarm function;
As a standard calibration equipment;
Applications:
The oil industry, chemical industry,Electric power.
Hydraulic pressure system,Pneumatic system
Energy and Water treatment system.
Automation equipment;
Industrial process control.
Performance parameters
Pressure range : -0.1~250MPa
Pressure mode : Gauge Pressure,absolute pressure
Display mode : 4-digit number LCD(Set Value/Actual Value)
Accuracy(%FS) : 0.1 0.25 0.5
Nonlinearity(%FS) : <0.1 <0.25 <0.5
Hysteresis(%FS) : <0.1 <0.25 <0.5
Repeatability(%FS): <0.1 <0.25 <0.5
Zero drift (%FS/℃): <0.02
Temperature drift(%FS)<0.02
Stability (%FS/Year): <0.25
Working voltage(V) : 9VDC( laminated battery)
Working temperature: -20~85
Overload capacity(%): 300
Life span: more than 9 million times pressure cycle
Response time (ms): 10
Measurement of medium: Mediums compatible with 316L
Diaphragm material: 316L or the ceramic diaphragm
Housing material : 1Cr18Ni9Ti or aluminum alloy
Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others
Protection grade: IP65
Weight : 80g
